JK Gauge Package (dual pod 2011-18)
JK Gauge Package (dual pod 2011-18)
AEM BOOST/VACUUM DIGITAL GAUGE
AEM’s 30-0306 X-Series -30in/Hg~35PSI / -1~2.5BAR Digital Boost Display gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost pressure readouts up to 35 PSI or 2.5 BAR in their high performance vehicle. Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED “needle” lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance. X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.
AEM WIDEBAND AIR/FUEL DIGITAL GAUGE
AEM’s X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge (PN 30-0334) provides tuners who are using piggyback tuning modules or open source software with the ability to view AFR through the factory CAN-bus stream that is output by the factory ECU, and deliver the most accurate, safe and powerful tune. The 30-0334 X-Series OBDII Wideband Gauge is validated to work with HPTuners VCM Suite software! The X-Series Wideband AFR OBDII Gauge includes an OBDII pass-through connector and Bosch 4.9LSU sensor that can be free-air calibrated or used with the factory resistor calibration. Additional wiring for a 0-5v or RS232 Serial output can be added by the user for outputting to a data logger. This OBDII pass-through capability replaces the traditional AEMnet stream available in the 30-0300 X-Series Wideband AFR Gauge Controller.
Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that can help ensure your vehicle is optimally tuned.
AUTOMETER A PILLAR | DUAL GAUGE POD
Transform your ride’s driver side into a high-performance cockpit with A-Pillar and Pod Mounts from AutoMeter. Custom designed for your specific vehicle, AutoMeter mounts your gauges right on your vehicle’s A-Pillar-at eye level where you need ‘em.With your gauges strategically stationed, you can gather engine vitals without loosing sight of the task at hand. Plus, a custom gauge cluster mounted to your A-Pillar gives your ride a racecar style that’s anything but factory!Custom built to fit your vehicle’s A-Pillar, AutoMeter offers single, dual, triple-even quad gauge mounts for a wide array of vehicles. And, the molded design takes only a few tools and minimal effort to pop right over your factory A-Pillar. What’s more, your Gauge Works A-Pillar and Pod Mounts by AutoMeter are backed by a 1-year warranty.

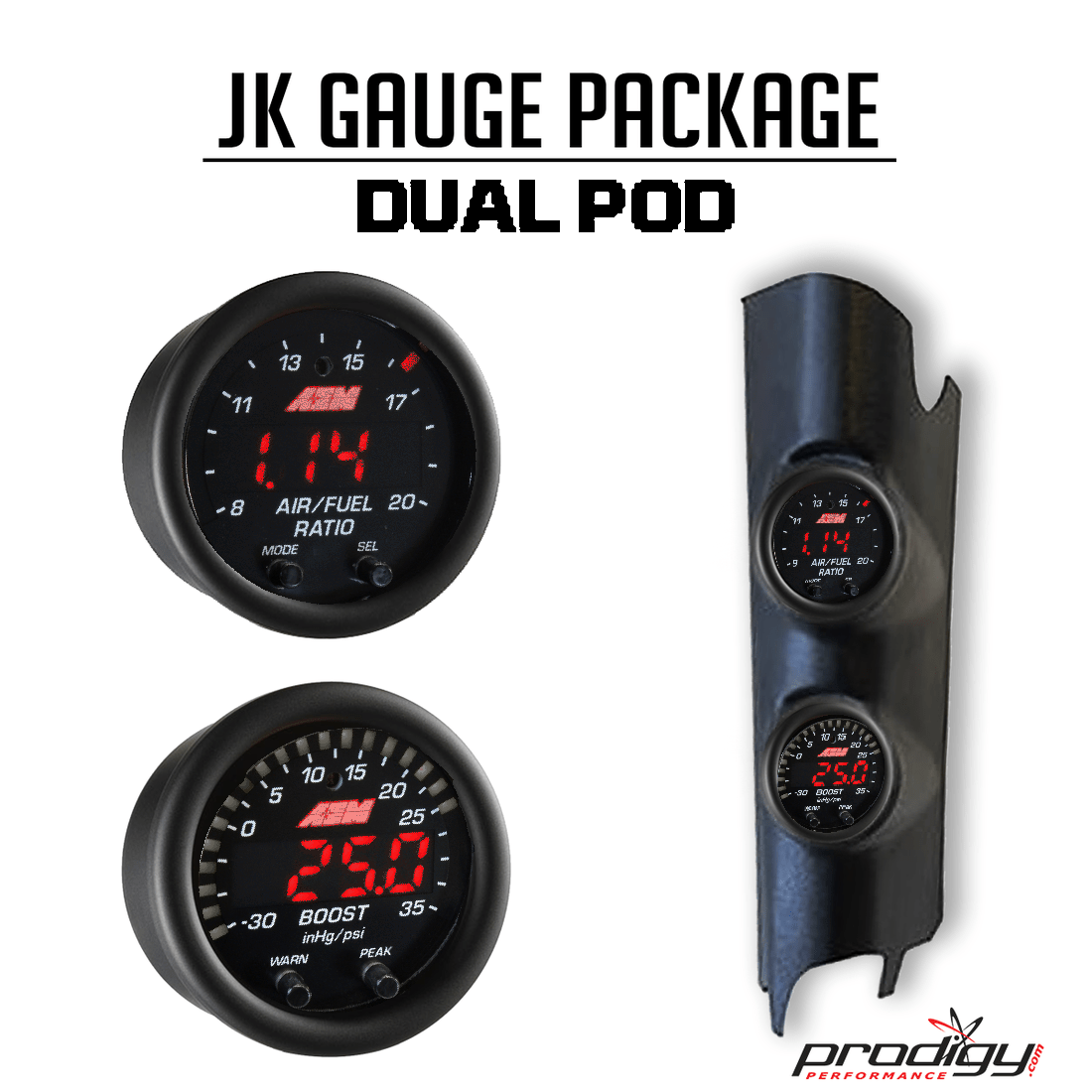

Prodigy Performance’s Jeep Wrangler AEM Dual Wideband/Boost gauge package, includes everything you need for your turbocharged JK. The following is included in this package. 1- Boost/Vacuum Digital Gauge 2- Autometer A Pillar | Dual Gauge Pod 3- Digital Wideband Air/Fuel Ratio Gauge
